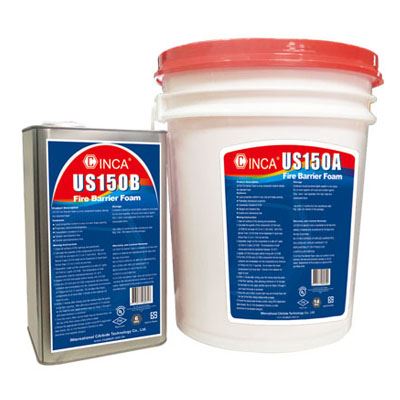

US150 Fire Barrier Foam

Description:
Fire Barrier Foam is a two component flexible product, consisting of separate A and B liquid
components which, when mixed, forms a medium-density fire retardant foam.
US150 / US110 is designed to seal large openings and multiple penetration areas such
as cablebundles, cable trays and metallic pipes.
Prior to foaming, the liquid components remain fluid allowing effortless sealing of any size and
shape opening.
After exposure to 1x10⁶ Gy (1x10⁸ rad) of neutron orgamma radiation, US150 &US110
will maintain full firestop performance characteristics 50 plus years.

Uses:

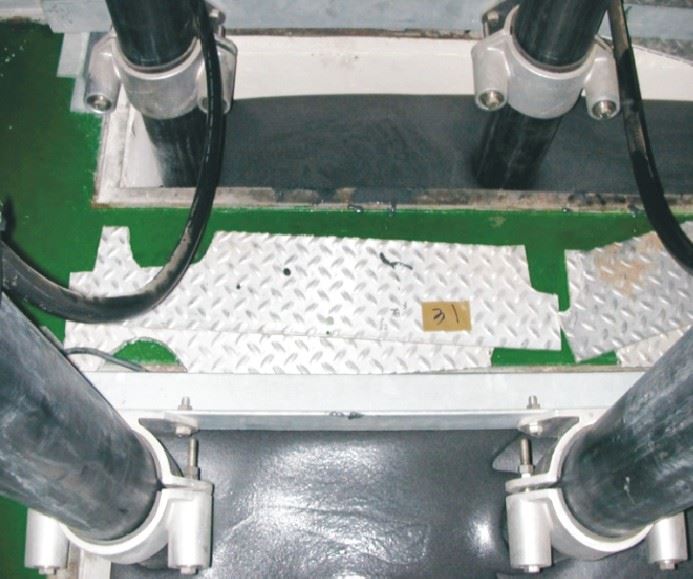

US150 / US110 Fire Barrier Foam seals single  or multiple penetrations through concrete or
masonry floor slabs, walls and other fire-rated  building partitions  and assemblies.

Feature:

●Liquid properties conform to any size or shape
  opening
●Proprietary intumescent properties
●Unparalleled resistance to fire
●consumption
●Halogen free
●Asbestos free
●Durable and maintenance free

Test:

●UL1479 2hr T Rating and F Rating
●FM approved
●ULC S115 2hrs FH Rating
●CNS14514, 3hrs, Class A and B
●GB23864
●ASTM E84
●ASTM E662

Installation：

Packing MAterial
Use at least 1 in. thickness of min 15 pcf ceramic fiber board firmly friction fitted into
opening as a permanent form and located flush withthe bottom surface of floor to
prevent fill material leakage.

Sealing
Generous application of sealant (INCA fire barrier silicone sealant
INSS2460 or caulk INSS1440),to be applied around the penetrant and the edges of
the opening,flush with the bottom surface of the floor to prevent fill material leakage.

Foaming
Min 7in. thickness of fill material applied within the annulus,flush with top surface
of floor.Two parts foam shall be mixed in accordance with the installation instructions
provided with the product.

 Specification：
