Product Details

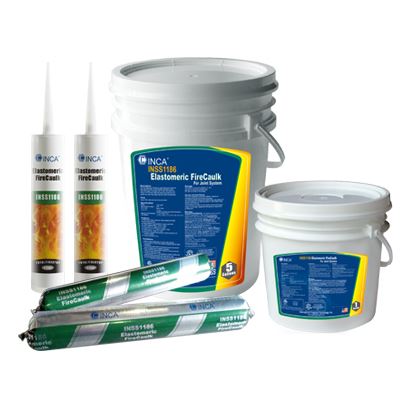

INSS1186 Elastomeric FireCaulk

  • Model:INSS1186

Product Introduction

Description:

INSS1186 Elastomeric FireCaulk is a water based acrylic elastomeric resin material that
offers excellent flexibility even after full curing.
INSS1186 is tested in accordance with UL 2079 and ULC S115 for use on dynamic joints system,
partition wall joints, and through penetrations.
INSS1186 can be applied by brush, roll coating bulk caulking gun or trowel. Compatible with

and adheres to mineral wool, calcium silicate board, plasterboard, cement or ceramic
fiber board.


Uses:

Wall to wall, wall to floor joint system.

Test:
●  UL2079,Assembly Rating 3-hours,L Rating (Movement capability ±8%)
●  ASTM E2307 3-hours F Rating,2-Hours T Rating
   (Movement capability:Horizontal ± 12.5%,Vertical ± 5%)
●  ASTM E 1966
● CAN/ULC S115, F, FT, FH, FTH Rating, 3 hours
● CNS15814-1
● CNS16071  3-hours F Rating;1hour T Rating


Feature:

●Water based
●Organic solvent free
●Withstands compression and extension in
  dynamic joints

●Water resistant and air-tight
●Halogen free
●Asbestos free
●Environmentally friendly
●Single component, easy application
●Can be applied with an airless spray

Specification:

Density
1.5±0.1g/cm³
Tack-free time
Approx. 30min.
Curing Time
3-7 days
(depend on thickness and ambient temperature)
Maximum cyclic displacement
±12.5%(ASTM C719)
 VOC  < 50g/L
 STC Rating(ASTM E90)  63 (per construction type)
Storage
10℃-30℃(50°F-86°F)
Package
310ml/Tube ; 25Tubes/CTN
20 fl.Oz/Sausage ;
20 Sausages/CTN

1G/Pail, 5G/Pail
 Shelf Life  2years
