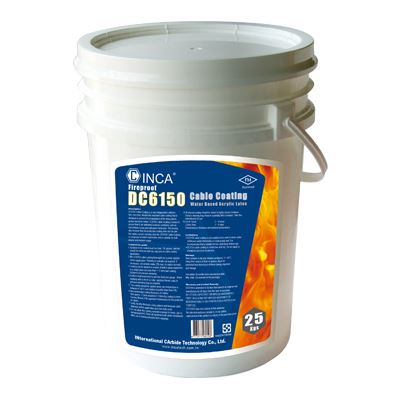

DC6150 Cable Coating (Ablative)

Descriotion:
DC6150 Cable Coating is a non-halogenated, asbestos-free, non-toxic flexible fire retardant
cable coating. DC6150 is designed to prevent  the propagation of fire along plastic jacked
electrical cables. DC6150 Cable Coating is  FM Approved and tested to ensure it can
withstand extreme conditions such as  freeze/thaw cycles and salt water immersion.
This testing also ensures that the protective  coating does not de-rate the cables current
carrying capacity. DC6150 Cable Coating is  composed of water based latex and is suitable
for both interior and exterior usage.

Specification:

●Water based material
●Non-halogenated
●Asbestos free
●High solids
●Remains flexible after cured
●Will not de-rate cable current capacity
●Water resistant
●Interior and exterior application
●FM Approved
●Withstand extreme conditions

Test:

●FM Approval Class: 3971
●IEEE 383
●IEC 60332-3A
●IEEE 1202

Limitations:

DC6150 cable coating is not suitable to be used  in areas under continuous water immersion or
continuously wet. It is recommended that a  sample test be undertaken before use.
DC6150 cable coating is conductive until dry.
Do not apply to energized electrical conductors.
